When selecting aluminum profiles for windows and doors, one of the most critical factors to consider is the thickness of the profile. The thickness of aluminum profiles not only impacts the strength and durability of the structure but also affects its insulation properties, aesthetic appeal, and overall performance. In this article, we will explore the recommended thickness for aluminum profiles, the factors influencing the choice of thickness, and the benefits of choosing the right thickness for you extruded aluminum products.
1. Understanding the Role of Thickness in Aluminum Profiles

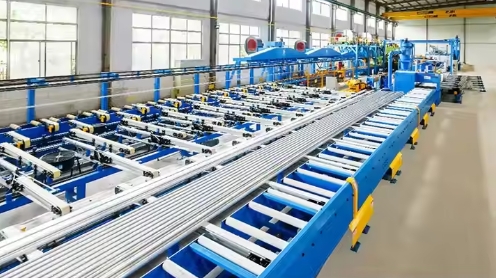

Aluminum profiles are typically manufactured through the aluminium extrusion process, where aluminum billets are pushed through a mold to create shapes with specific cross-sections. The thickness of the profile refers to the distance between the outer surfaces of the profile walls. The thickness is a critical parameter because it directly affects the mechanical properties, including the strength and resistance to external forces like wind, rain, and mechanical pressure.
When choosing the right thickness for aluminum profiles for windows and doors, several factors need to be considered, including the type of application, the specific requirements of the building, and the design preferences.
2. Factors Influencing the Recommended Thickness
2.1 Structural Requirements
The primary consideration when choosing the thickness of aluminum profiles is the structural integrity of the window or door. In areas with high wind loads or heavy rainfall, thicker profiles may be required to provide additional strength and resistance. Inversely, in low-load applications, thinner profiles may be sufficient.
The weight of the window or door, as well as the number of panels, also plays a role. Larger windows or doors with multiple panels generally require thicker profiles to ensure the overall structure can bear the weight without bending or warping over time.
2.2 Thermal Insulation Properties
The thickness of aluminum profiles also impacts their ability to insulate against heat transfer. Thicker profiles generally provide better insulation, reducing the amount of heat that passes through the material. This is especially important in energy-efficient buildings and climates where temperature control is a concern.
However, aluminum is a naturally conductive material, meaning it can still transfer heat even with a thicker profile. To address this issues, many aluminum profiles for windows and doors incorporate a thermal break —— a section made of a non-conductive material that helps reduce heat transfer between the inner and outer surfaces of the profile.
2.3 Aesthetic Considerations
While functionality is key, aesthetic appeal is also important when selecting aluminum profiles for windows and doors. Thicker profiles often create a more robust and bold appearance, which can be desirable in certain architectural styles. On the other hand, thinner profiles create a more minimalist look and allow for larger panes of glass, which can enhance the amount of natural light entering a room.
2.4 Environmental Factors
In regions with extreme weather conditions —— such as high temperatures, heavy snow, or strong winds —— the recommended thickness for aluminum profiles may need to be increased to ensure durability and performance. Thicker profiles offer better resistance to these environmental factors and can prevent issues such as warping, cracking, or deformation.
2.5 Industry Standards and Building Codes
Each country or region has specific building codes and industry standards that dictate the recommended thickness for aluminum profiles used in windows and doors. These standards ensure that the profiles meet the necessary structural and safety requirements. It is important to check local building codes when selecting the thickness of aluminum profiles to ensure compliance.
3. Typical Thickness Ranges for Aluminum Profiles for Windows and Doors
The thickness of aluminum profiles for windows and doors generally ranges from 1.2 mm to 3.0 mm, depending on the application and design requirements. Below are the typical thickness ranges for various applications:
· Residential Windows and Doors: For most residential applications, the thickness of aluminum profiles typically ranges from 1.2mm to 2.0 mm. This thickness is sufficient for most load-bearing applications and provides a balance of strength, insulation, and aesthetic appeal.
· Commercial Windows and Doors: For commercial buildings or high-rise structures, aluminum profiles with a thickness range of 2.0 mm to 3.0 mm are often recommended. These profiles are designed to withstand higher wind loads and offer greater durability.
· High-Performance Windows and Doors: In cases where enhanced insulation or resistance to extreme weather is required, thicker profiles (over 3.0 mm) may be used. These profiles are typically designed with thermal breaks to improve insulation and energy efficiency.
4. Pros and Cons of Thicker Aluminum Profiles
4.1 Advantages of Thicker Profiles
· Increased Strength: Thicker profiles are better at bearing heavy loads and resisting external forces such as wind pressure and mechanical impact. This makes them suitable for large windows or doors, especially in commercial and industrial settings.
· Better Insulation: Thicker profiles help to minimize heat transfer, improving the thermal insulation of the window or door. This leads to better energy efficiency and reduced heating and cooling costs.
· Longer Lifespan: Thicker profiles are generally more durable and resistant to wear and tear, leading to a longer lifespan. They are less likely to warp, bend, or corrode over time.
4.2 Disadvantages of Thicker Profiles
· Higher Cost: Thicker profiles require more material, which increases the cost of production. This can make thicker aluminum profiles more expensive than their thinner counterparts.
· Heavier Weight: Thicker profiles add weight to the window or door, which can make installation more challenging. It can also increase the stress on the building structure.
· Limited Design Flexibility: Thicker profiles can limit the design possibilities, as they may obstruct views or reduce the amount of glass used in the frame.
5. How to Choose the Right Thickness for Your Aluminum Profiles
To determine the ideal thickness for your extruded aluminum profiles, consider the following:
· Application Type: Indentify whether the profiles are for residential, commercial, or high-performance applications.
· Load-Bearing Capacity: Consider the weight of the window or door and the wind loads in your area.
· Energy Efficiency: If insulation is a priority, consider thicker profiles with thermal breaks.
· Aesthetic Preferences: Balance the thickness with the design goals, considering the desired appearance and functionality.
· Building Regulations: Always verify local building codes and industry standards to ensure compliance.
Conclusion
The thickness of aluminum profiles for windows and doors plays a crucial role in determining the strength, durability, insulation properties, and aesthetic appeal of the final product. The ideal thickness depends on various factors, including structural requirements, environmental conditions, and design preferences. By understanding these factors, you can choose the right thickness for your aluminum profiles, ensuring the performance and longevity of your windows and doors.
