Part 1: Main Materials

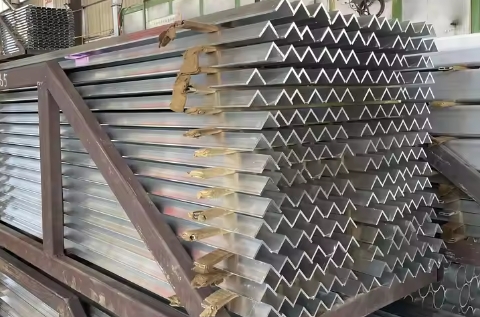

1. Aluminum alloy profiles
Aluminum alloy profiles are a fundamental material used in the construction of doors and windows due to their durability, light weight, and corrosion resistance. Here's how they are classified:
Profile Identification:
(1) Horizontal Opening Products:
· Frame: The outer structure providing support.
· Middle Frame: Supports the central section.
· Yarn/Glass Fan Material: Used for the movable part of the window.
· Cover: Protective cover for the frame.
· Fully Open Middle Frame: Allows complete opening.
· Middle Transverse: Horizontal support in the frame.
· Other Auxiliary Materials: Additional supporting materials.
(2) Push-Pull Products:
· Outer Frame:The main structure.
· Upper Rail: Top guide rail for sliding.
· Lower Rail: Botton guide rail for sliding.
· Yarn/Glass Fan Material: Movable part of the window.
· Hook and Groove: Locking mechanism.
· U Groove: Guide groove for the sliding mechanism.
· Other Auxiliary Materials: Additional supporting materials.
2. Hardware Accessories
Hardware accessories are crucial for the functionality of doors and windows, facilitating opening, closing, and securing mechanisms. Different types of windows require specific hardware accessories, including hinges, locks, handles, and rollers, each designed to enhance the performance and durability of the doors and windows.
3. Glass/Diamond Mesh
Glass
· Tempered Glass: Marked with "G" for identification.
· Safety Glass: Includes tempered glass, laminated glass, or combination. If it's double-layered, both layers must be tempered and marked with a 3C mark to ensure safety.
Diamond Gauze Mesh:
· Also known as super safety net or anti-theft net, made from high-strength stainless steel wire.
· Features include high strength, shear resistance, and effective insect prevention.
· The mesh is concealed within aluminum doors and windows, enhancing security without compromising aesthetics.
4. Auxiliary Materials
· Corner Code: Used for splicing outer frame and window sash.
· Adhesive Strip: Provides sealing when doors and windows are closed, enhancing airtightness and watertightnes.
· Wool Strip: Used for sealing sliding doors and windows, preveting air and water leakage, and keeping out insects.
· Glass Adhesive: Seals joints between window frames and walls, profiles, and glass.
· Corner Adhesive: Strengthens the frame corner connection in system windows.
· Section Adhesive: Seals the end faces of frames and window sashes.
· Screws: Assemble door and window frames and fix hardware accessories.
· Install Pull Tab: Secures the door and window frame to the wall or structure.
· Foaming Agent: Fills gaps between aluminum alloy frames and openings.
Part 2: Production and Processing
Door and Window Processing Process

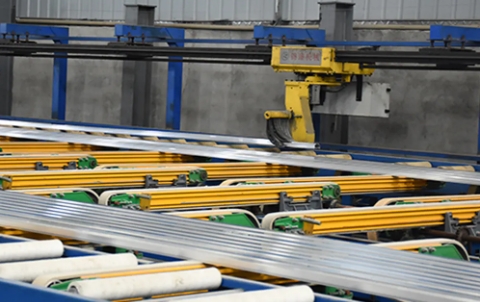

The production of aluminum profiles for doors and windows involves several steps to ensure high quality and performance:
1. Broken Material: Cutting the raw aluminum material to size.
2. Punching and Milling End Face: Preparing the ends of the profiles for assembly.
3. Box Group Corner: Assembling the frame corners.
4. Side-Hung Doors and Window Sash Assembly Angles: Specifically for side-hung doors and windows (refers to glass installation for sliding doors and windows).
5. Hardware Installation: Fitting hinges, locks, handles, and other hardware.
6. Glass Installation: Inserting and securing glass panes.
7. Packaging Factory: Final inspection and packaging for shipment.
Part 3: Selection Tips for Aluminum Profiles
When selecting aluminum profiles for doors and windows, several factors should be considered to ensure you get the best performance and durability:
1. Profile Thickness and Strength: These determine the load-bearing capacity and wind resistance of the doors and windows. Choose profiles with appropriate thickness and strength for your specific needs.
2. Surface Treatment: The surface finish affects corrosion resistance and aesthetics. Common treatments include oxidation, electrophoresis, and spraying.
3. Broken Bridge Thermal Insulation Technology: If thermal insulation is a priority, choose broken bridge aluminum profiles. This technology effectively isolates indoor and outdoor temperatures, enhancing the energy efficiency of doors and windows.
Part 4: Advantages of Aluminum Profiles for Doors and Windows
1. Light Weight and High Strength: Aluminum profiles are strong yet lightweight, making them ideal for large windows and doors without compromising structural integrity.
2. Corrosion Resistance: Aluminum naturally resists corrosion, extending the lifespan of doors and windows, especially in harsh weather conditions.
3. Easy Processing: Aluminum can be easily extruded into various shapes and sizes, allowing for customized designs and complex window and door structure.
4. Aesthetic Appeal: Aluminum profiles can be anodized or coated in various colors, offering flexibility in design and ensuring they complement different architectural styles.
5. Environmental Benefits: Aluminum is recyclable, reducing the environmental impact and contributing to sustainability in the construction industry.
Part 5: Challenges in Aluminum Profile Production
While aluminum profiles offer numerous benefits, their production and usage come with challenges:
1. Professional Equipment and Technology: The extrusion process requires advanced equipment and skilled operators.
2. Material Quality: Selecting the right aluminum alloy is crucial for ensuring the desired performance and durability.
3. Mold Design and Manufacturing: Creating precise molds is essential for producing accurate and high-quality profiles, but it can be costly and time-consuming.
Conclusion
Aluminm profiles for doors and windows are an essential component in modern construction, offering a balance of strength, durability, and aesthetic appeal. By understanding the production process and key selection criteria, builders and homeowners can make informed decision, ensuring the long-term performance and visual impact of their doors and windows. As technology and manufacturing techniques continue to advance, aluminum profiles will play an increasingly significant role in sustainable and innovative building designs.
