Aluminum profiles are widely regarded as an ideal material for door and window frames due to their high strength, durability, and wide range of surface treatment options. Whether for residential, commercial, or industrial use, aluminum doors and windows offer numerous advantages, including excellent corrosion resistance, weather resistance, low maintenance costs, and good energy efficiency. However, proper installation is crucial to fully realize these advantages.
Installation details directly determine the sealing performance, sound insulation effect, and service life of windows and doors in the future. Ignoring these details can easily lead to after-sales problems, such as water leaks, air leaks, and malfunctions. Focusing on the practical essentials of aluminum profile windows and doors, this installation guide outlines the installation process and key points for attention, helping installers work to standard and reducing the risk of future failures.
Before purchasing and installing aluminum alloy doors and windows, be sure to complete the following preparations. This ensures optimal performance, thereby creating a comfortable home environment for you.
Remove debris, dust, and remaining sealant around the opening. Uneven openings should be repaired with concrete or other suitable materials.
Accurately measure the opening dimensions and determine the window size and configuration. Reserve an installation gap of 1-2 cm.
The choice of fasteners and fixing methods depends largely on differences in the strength, density, and anchor ability of wall materials.Incorrect fasteners may damage the structure, loosen the window and door, or cause water leakage.

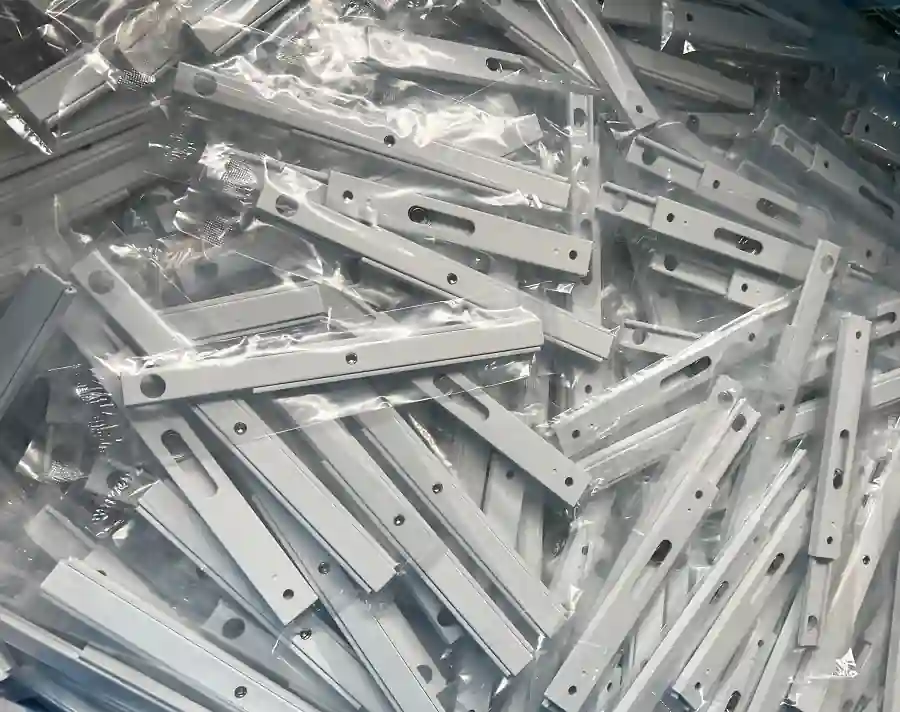

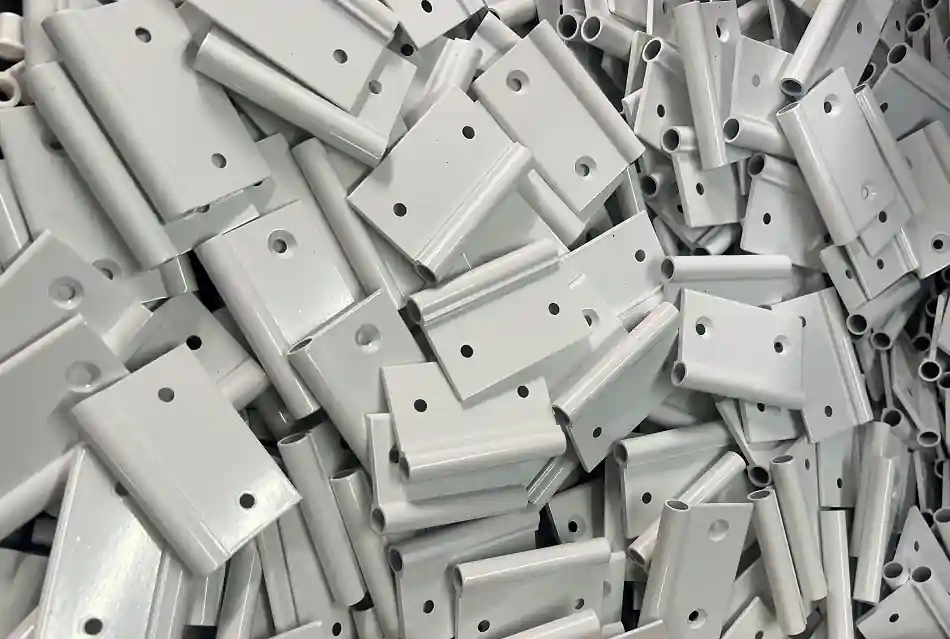

Aluminum alloy doors and windows mainly consist of five parts: frame, sash, glass, hardware, and sealing materials. Although different types of doors and windows (such as casement windows, sliding windows, etc.) may differ in specific accessories, their core structure includes these five parts.
When purchasing doors and windows, please verify the profile dimensions, quality (6000-series aluminum alloy), and glass specifications, and ensure that all hardware accessories are complete to avoid affecting the installation schedule and outcome.
Before starting, ensure that the construction site is ready and that all necessary tools and materials are available. These may include:
The key steps for installing aluminum alloy doors and windows are similar; the installation of a window is used here as an example.
The best installation sequence: frame → glass → handles and locking components → sashes.
Before installation, check whether the delivered window packaging is intact, whether the aluminum profile is deformed, and test whether the drainage function of the drainage holes is normal.
Use a level to determine horizontal and vertical alignment and mark positioning lines for correct frame placement. This allows for sufficient space on the windowsill for decoration or installation of a windowsill drip edge, and determines the placement of the aluminum window frame profile to ensure it is both horizontal and vertical.
Install the aluminum frame according to the positioning lines. Use a level to check the verticality and horizontality of the frame. If there is any deviation, it can be adjusted using wooden wedges or airbags; it can also be adjusted by gently tapping with a rubber mallet.
Once the frame is properly positioned, check whether the gap between the frame and the wall is too large (>3 cm). If this occurs, please install special load-bearing pads to prevent doors and windows from sagging and affecting their sealing performance.
This step is crucial because any deviation will affect the functionality and appearance of the final installation.
Safety Tip: This step requires the assistance of multiple people.During the operation, someone must always hold the window frame or secure it with a safety rope to prevent the window frame from suddenly tilting or falling.
After confirming the frame's position, secure it in place using screws or expansion bolts.The fixing sequence is as follows:
Mark the hole positions in advance with a marker. Fixing holes are installed near the four corners of the frame (spacing ≤ 150 mm) and at other locations along the frame line (spacing ≤ 600 mm).
It is recommended to stagger the inner and outer fixing guide holes to ensure that the holes are evenly distributed around the frame to provide sufficient support. In addition, be sure to avoid heat insulation strips.
Use an impact drill to drill guide holes through the frame into the surrounding structure (wall or masonry).
You can first drill with a bit one size smaller than the screw, then drive the screw—this makes drilling easier and ensures the screw fixes the aluminum window frame profile firmly.
After drilling, use screws or expansion anchors to secure the frame to the structure. Be sure to use corrosion-resistant fasteners to prevent rusting over time, which would shorten the service life of the doors and windows.
Tip: After fixing, apply sealant to the screw holes to prevent water from entering the aluminum cavity and avoid screw rust and mold growth on the profile.
After the frame is fixed, spray the wall joints with water, then fill them with polyurethane foam. Moistening the wall helps the foaming agent expand evenly and bond tightly to the substrate, thereby enhancing the overall adhesion.
After the foaming agent has fully cured, use a utility knife to cut off any excess protrusions to keep the surface smooth.
Then, apply weather-resistant sealant evenly to both the indoor and outdoor sides. When applying the sealant, make the transition into a smooth arc at the corners, and keep the width of the sealant at 8-10 mm.
Whether you are installing the glass onto a fixed frame or a window sash, the method is the same.
Carefully place the glass into the pre-drilled mounting groove in the aluminum section and insert the pressure strip to fix the glass in place.
Then, use a pry bar to evenly press the EPDM rubber sealing strip into the gap at the edge of the glass, so that a flexible contact is formed between the glass and the aluminum alloy pressure strip, thereby firmly clamping the glass.
Safety Tip: For large glass panels such as enclosed balcony windows or extra-large door and window systems, multiple people are required to work together and use specialized suction cup lifting tools. We recommend hiring professionals to handle this.
Install handles, locking mechanisms, crescent locks, rollers, and other hardware according to the manufacturer's instructions.
Test the opening and closing of the window to ensure that the transmission lock can properly extend and retract the locking points.
Insert the top of the window sash with the roller assembly into the upper track of the window frame, align it with the lower track, and then gently lower it so that the rollers fall into the track.
Slide the window sash back and forth a few times to confirm that it operates smoothly, tightly, and without any jamming.If it does not run smoothly, the height of the pulley can be finely adjusted.
After successful adjustment, install the restrictors—usually on the upper track (anti-jump) or lower track (sliding limit)—to prevent the sash from derailing or being moved by wind.
Repeatedly open and close the window sash to test whether the lock can close properly.You can make fine adjustments to the hardware position to ensure the locking points engage precisely with the keepers,so that the window sash is evenly sealed after locking.
Wipe the glass and frames with a damp cloth, check the tracks for any debris, remove installation residue from the work area, and pack up the tools.
By following the steps above, the window installation is complete.
Dust tends to accumulate in the tracks of sliding windows. It is recommended to clean them monthly using a brush or vacuum cleaner to prevent the rollers from jamming, which could make sliding difficult or cause unusual noises.
Apply 1–2 drops of lubricating oil to hardware components—such as hinges, rollers, and locking points—approximately every six months. After application, open and close the window a few times to distribute the oil evenly. If the lock cylinder becomes stiff, scraping some graphite powder from a pencil lead and blowing it into the keyhole is more effective than using oil, as it is less likely to attract dust.
Periodically inspect the screws at the window frame connections and tighten them promptly if any have come loose.
Inspect the seals once a year. If you notice signs of aging, cracking, or detachment, replace them immediately; otherwise, the window's sound insulation and waterproofing performance may be compromised.
When it comes to the performance of aluminum doors and windows, 30% depends on the product and 70% on the installation. Quality aluminum profiles and accessories only deliver their full performance when paired with standardized installation work.
By following the correct installation process, you ensure long-term, stable use of the doors and windows throughout their entire service life, and reduce subsequent maintenance costs.
