In the world of modern construction, aluminium profiles are widely used for manufacturing windows and doors due to their lightweight nature, durability, and flexibility. The performance and aesthetic quality of these applications depend significantly on maintaining precise dimensional tolerances during production. But what exactly is the "ideal" tolerance, and why is it so important for aluminium profiles for windows and doors?
Understanding Tolerances in Aluminium Profiles
Tolerance refers to the permissible variation in the dimensions of a product from its specified measurements. In the case of aluminium profiles, this covers parameters like wall thickness, length, flatness, straightness, and angular dimensions. Maintaining precise tolerance is critical to ensure:
1. Seamless Assembly: Proper fit and function of profiles within window and door systems.
2. Structural Integrity: Enhanced durability and resistance against environmental forces.
3. Energy Efficiency: Tighter tolerances reduce air gaps, improving thermal and acoustic insulation.
Factors Influencing Tolerance Standards
Several factors affect the achievable tolerances in aluminium profiles:
1. Extrusion Process

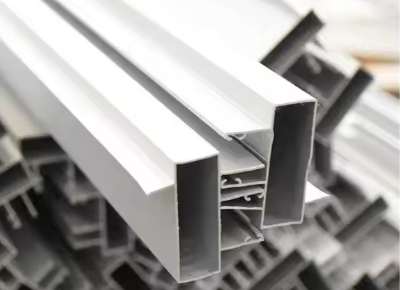

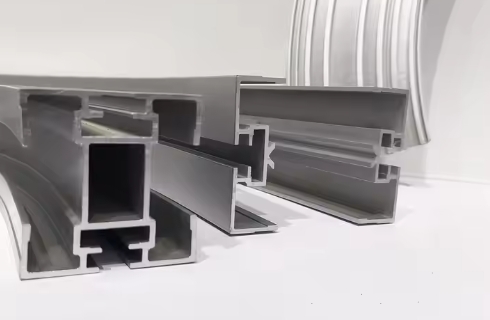

Aluminium profiles are manufactured using an extrusion process where heated aluminium alloy material is pushed through a die. Variations in die design, extrusion speed, and cooling rates can impact dimensional accuracy.
2. Material Composition
Different aluminium alloys have varying extrusion properties. For instance, 6063-T5, a common aluminium alloy material for architectural applications, offers a excellent dimensional stability and finish quality.
3. Surface Treatment
Processes like anodizing, powder coating, or painting can slightly alter the dimensions, especially the thickness of the profile.
4. Machining and Fabrication
Post-extrusion machining, including cutting, drilling, or milling, can also affect tolerances.
Standard Tolerances for Aluminium Profiles
Global standards such as those outlined by ISO and ASTM provide guidance on accpetable tolerances for aluminium profiles. While specific figures can vary, typical ranges include:
· Wall Thickness Tolerance: ±0.15 mm to ±0.25mm, depending on the thickness and alloy type.
· Length Tolerance: ±1.5 for standard profiles, tighter for precision applications.
· Straightness: Deviation of up to 1 mm per meter length is generally acceptable.
· Flatness and Twist: Controlled within 0.5% to 1% of the profile dimensions.
These tolerances ensure aluminium profiles maintain their functionality while accommodating the minor variations inherent to the manufacturing process.
Importance of Tolerance in Window and Door Applications
1. Precision Fit

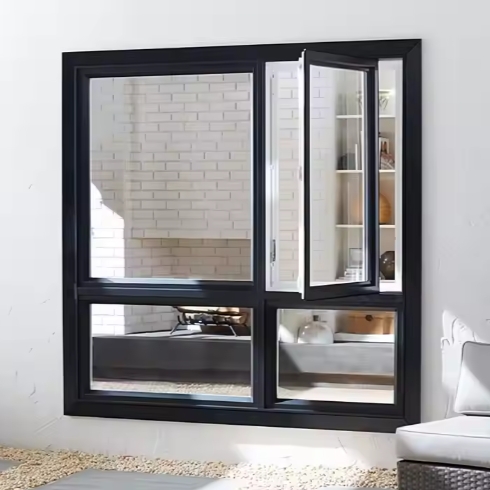

Aluminium profiles for windows and doors must align perfectly with other components, such as glass panes, rubber seals, and hinges. Excessive deviation can lead to misalignment, reducing performance and aesthetics.
2. Energy Efficiency
Profiles with tight tolerances minimize gaps, enhancing thermal insulation and reducing energy loss.
3. Weather Resistance
Accurate tolerances help create airtight and watertight seals, protecting interiors from wind, rain, and dust.
4. Ease of Installation
Consistency in dimensions simplifies the assembly process, reducing installation time and errors.
How Manufacturers Maintain Tight Tolerances
Advanced technology and quality control systems are crucial for acheiving precise tolerances in aluminium profiles:
1. High-Quality Dies
Modern CNC-machined dies ensure consistent extrusion shapes and dimensions.
2. In-Line Quality Checks
Real-time measurement systems during extrusion detect and correct deviations.
3. Controlled Cooling Systems
Uniform cooling after extrusion prevent warping and ensures dimensional stability.
4. Standardized Testing
Manufacturers often use coordinate measuring machines (CMMs) to verify tolerances in finished products.
Innovations in Aluminium Alloy Material for Improved Tolerances
The development of high-performance aluminium alloy materials, such as 6061 and 6082, has improved the ability to maintain tighter tolerances. These alloys combine strength, corrosion resistance, and machinability, making them ideal for precision applications like windows and doors.
Moreover, advancements in extrusion technology, such as multi-axis presses and automated die correction, continue to push the boundaries of achievable tolerances.
Selecting the Right Aluminium Profile for Your Project
When choosing aluminium profiles for windows and doors, consider the following:
1. Verify Tolerance Standards
Ensure the supplier adheres to recognized standards like ISO 2768 or ASTM B221.
2. Assess Supplier Capabilities
Partner with manufacturers equipped with advanced extrusion and quality control systems.
3. Customization Options
Look for suppliers offering tailored tolerances to meet unique project needs.
Conclusion
The ideal tolerance for aluminium profiles for windows and doors depends on their application, material, and design requirements. By adhering to stringent standards and leveraging cutting-edge technology, manufacturers can deliver profiles that ensure precision, duraility, and performance. For architects and builders, understanding these tolerances is key to selecting the right aluminium profiles for their projects, ensuring long-lasting reesults that meet both aesthetic and functional goals.
