Aluminum extrusion is a critical process in manufacturing aluminum profiles for various industries, from automotive and aerospace to construction and electronics. The process transforms aluminum alloys into objects with a defined cross-sectional shape, producing parts that a lightweight, strong, and durable. The versatility of aluminum extrusion profiles makes them suitable for a range of applications, including structural components, window frames, heat sinks, and railings. Here, we begin with a brief discussion about the steps involved in the production of aluminum extrusion profiles and highlight how aluminum extrusion profiles are created to meet the exacting standards of various industries.
Aluminum Extrusion Process
1. Preparation of Aluminum Billet
The extrusion process begins with a solid cylindrical block of aluminum, known as a billet. The billets are typically cast from aluminum alloys that are carefully chosen based on the mechanical and chemical properties required for the end product. Common alloys include 6061 and 6063, known for their excellent strength, corrosion resistance, and formability.
Before extrusion, the aluminum billet is preheated to a temperature between 800℉ to 925℉ (425℃ to 496℃). Preheating the billet softens the aluminum without melting it, which makes the metal more ductile and easier to shape. Proper control of this temperature range is crucial as it ensures the aluminum flows smoothly through the die during extrusion, while also maintaining the required material properties.
2. Extrusion Process
Once the aluminum billet is preheated, it is ready to be extruded. The billet is transferred to the extrusion press, where a hydraulic plunger or ram pushes it into the container and forces it through a steel die, which contains an opening shaped like the desired cross-section of the final products. This step is the core of the aluminum extrusion process and involves immense pressure --- often in the range of thousands of tons.
As the heated billet is forced through the die, it takes on the shape of the die opening, emerging as a continuous length of aluminum extrusion profile. The flexibility of the extrusion process allows for the creation of complex cross-sections that would be impossible to manufacture using other methods such as casting or machining.
Direct Extrusion vs. Indirect Extrusion:
There are two main types of extrusion: direct and indirect. In direct extrusion, the die remains stationary, and the aluminum billet is pushed through the die by the plunger. In indirect extrusion, the die moves toward the billet, and the aluminum flows in the opposite direction of the plunger's movement. Direct extrusion is more commonly used but requires higher force compared to indirect extrusion.
3. Quenching and Cooling
Once the aluminum extrusion exits the die, it is still hot and malleable. To stabilize its microstructure and ensure it has the desired mechanical properties, the profile must be rapidly cooled or quenched. The cooling process can be achieved through air quenching or water quenching, depending on the specific aluminum alloy and desired profile characteristics.
Quenching is a crucial step in the extrusion process as it locks in the properties gained from the heat treatment. For example, alloys such as 6061 or 6063 respond well to this step, gaining increased strength and durability after quenching. However, it's essential that the cooling process is controlled, as rapid cooling can introduce internal stresses that may need to be addressed in later stages.
4. Stretching
After quenching, the extruded aluminum profiles may develop some imperfections, such as bending or twisting, due to the immense pressure applied during extrusion. To correct these distortions, the profiles undergo a stretching process. In this step, the extrusion is stretched to align the aluminum molecules, straighten the profile, and ensure it conforms to the required tolerances and specifications.
Stretching also helps relieve internal stresses within the material, which could otherwise compromise the strength or dimensional accuracy of the final product. Typically, the profile is gripped at both ends and pulled until it reaches the correct dimensions.
5. Cut to Length
Once the aluminum extrusion profiles are stretched and straightened, they are cut to the desired length. This step is performed either immediately after the extrusion process or after the profile has cooled and hardened further. Cutting the profiles to precise lengths is essential for minimizing material waste and ensuring that the profiles are ready for further processing or assembly.
Cutting methods can vary depending on the application. For instance, for architectural profiles like window frames, cutting to vary specific dimensions is critical to ensure proper installation. In some cases, extrusions may be cut to longer lengths for storage and later cut to shorter dimensions as needed.
6. Aging and Hardening
The final step in the aluminum extrusion process is aging, which strengthens the aluminum profile by enhancing its mechanical properties. Aging can be done in two ways: natural aging, where the profile is left at room temperature, or artificial aging, where the profile is heated in a controlled environment at elevated temperatures (typically between 300℉ and 400℉).
Artificial aging is more common because it accelerates the hardening process, making the material ready for use in less time. During aging, the aluminum undergoes precipitation hardening, where small particles form within the metal matrix, locking the aluminum atoms in place and increasing the material's strength. The aging process is essential for achieving the full hardness and durability required in most aluminum extrusion profiles, particularly those used in load-bearing or structural applications.

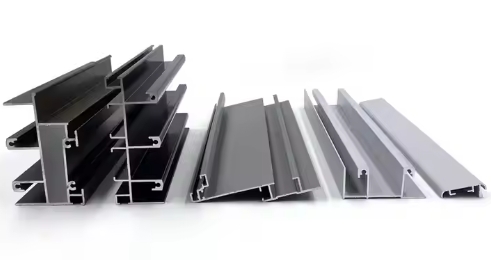

7. Finishing Options for Aluminum Extrusion Profiles
After the aluminum extrusion profiles are manufactured, they often undergo additional finishing processes to enhance their appearance, durability, or functionality. Common finishing options include:
· Anodizing: This electrochemical process increases corrosion resistance and allows for the addition of color to the aluminum surface, making it ideal for architectural and decorative applications.
· Powder Coating: Powder coating adds a durable, attractive finish to the aluminum profile, available in various colors.
· Mechanical Polishing: Polishing the surface improves the smoothness and shine, giving the profile a more refined look.
These finishing processes not only enhance the aesthetic qualities of the aluminum extrusion profiles but also provide additional protection against environmental factors such as UV radiation, moisture, and salt exposure.
Conclusion
The process of manufacturing aluminum extrusion profiles is a complex yet highly versatile method of producing custom-shaped aluminum components that meet the demands of numerous industries. From preparing the aluminum billet to cutting, cooling, and aging the extruded profiles, each step plays a crucial role in ensuring that the final product has the desired strength, formability, and appearance.
Whether used in construction, automotive, electronics, or aerospace industries, aluminum extrusion profiles provide unmatched versatility, durability, and design flexibility. By understanding the manufacturing process and tailoring each step to meet specific application requirements, manufacturers can produce high-quality extrusions that deliver optimal performance for years to come.
