Have you ever wondered why aluminum window and door frames exposed to sun, wind, and rain for years can still look almost as good as new? The answer lies in a classic surface treatment process: anodizing.
Rather than applying an additional layer of paint, this process uses an electrochemical reaction to grow a dense, hard oxide film directly on the aluminum surface. It gives aluminum profiles excellent corrosion and wear resistance while enhancing their appearance and service life.
How exactly does anodizing create a protective barrier for aluminum profiles used in windows and doors? This article explains the process from three perspectives: the underlying principles, the corrosion-protection mechanism, and the practical benefits.
Aluminum is a chemically reactive metal. In the air, it readily reacts with oxygen, forming a natural oxide film on its surface. However, this naturally formed oxide film is usually only 0.01–0.1 micrometers thick; not only is the thickness limited, but the structure is also porous, resulting in weak protective ability.
Without further treatment, black spots may appear on the surface of aluminum profiles after being stored in a humid environment for a few days, making them less resistant to long-term corrosion from moisture, salt, acid rain, and other external factors.
Anodizing is a surface treatment process developed precisely to solve this problem. By artificially controlling the electrochemical reaction, a dense and hard aluminum oxide film is generated on the surface of aluminum alloy, thereby improving their corrosion resistance, wear resistance and decorative properties.

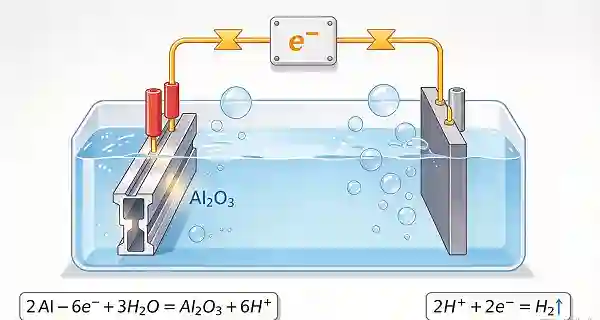

In the production of aluminum profiles for windows and doors, direct-current sulfuric acid anodizing is commonly used. In this process, an aqueous sulfuric acid solution serves as the electrolyte, the aluminum profiles acts as the anode, and a lead plate acts as the cathode. When direct current is applied, an oxidation reaction takes place on the aluminum surface, forming an oxide film.
Under a direct-current electric field, the main reactions are as follows:
During the anodizing process, sulfuric acid dissolves a portion of the oxide film as it forms.Therefore, film formation is essentially a dynamic balance between the “formation rate” and the “dissolution rate.”
When the rate of oxide film formation exceeds the rate of dissolution, the film will continuously thicken; if the dissolution effect is too strong, the film will not reach the expected thickness. By controlling the electrolyte temperature, current density, sulfuric acid concentration, and treatment time, manufacturers can obtain a film that meets the required quality standards. With this method, the anodic oxide film is generally 5–30 microns thick.
Because sulfuric acid partially dissolves the outer oxide layer, the resulting film generally consists of two parts:
The protective effect of an anodic oxide film mainly comes from two properties: physical isolation and chemical stability.
A dense oxide film, particularly its inner barrier layer, separates the aluminum substrate from air, moisture, salts, acid rain, and other corrosive substances, reducing the direct impact of the environment on the aluminum.
In general, a thicker film provides a stronger barrier and better wear and corrosion resistance.
The main component of the anodic oxide film is aluminum oxide (Al₂O₃), which is relatively chemically stable. Unlike exposed aluminum, it does not readily continue reacting with moisture and oxygen in the environment, helping to slow the corrosion process.
The pores in the outer layer of the oxide film help it absorb colorants, but if left open, they may also provide pathways for moisture and corrosive agents to penetrate. Aluminum therefore needs to undergo a sealing process after anodizing.
Processes such as hot-water sealing, steam sealing, or salt-solution sealing allow hydrated oxides to fill the tiny pores in the porous layer and close these potential pathways. Sealing makes the oxide film a more complete physical and chemical barrier, thereby improving corrosion resistance.
Anodizing can be classified by current type, electrolyte, and film characteristics.
Among these methods, direct-current sulfuric acid anodizing is widely used for architectural window and door profiles and decorative aluminum products for several reasons:
A sealed oxide film effectively blocks air and moisture, helping protect aluminum from corrosion. The material can maintain stable performance even after long-term exposure to harsh conditions, such as humid or coastal environments.
Anodic oxide films can reach a hardness of 200–500 HV and offer good scratch and wear resistance, helping the surface remain free of noticeable marks during everyday use.
An oxide film is not a coating applied by spraying after manufacture. It grows directly from the aluminum substrate and bonds closely to the base material, giving it strong adhesion and making delamination, peeling, and flaking less likely.
This is a fundamental difference between anodizing and post-coating processes such as powder coating or wood-grain transfer.
The porous layer absorbs dyes effectively. Through anodizing and coloring, aluminum section can achieve a variety of finishes, including antique bronze, champagne, black, gold, bronze, brown, and gray, meeting the diverse design needs of modern architecture.
Because the color is absorbed into the oxide film, the overall finish is more uniform and is less likely to fade noticeably after prolonged exposure to sunlight.

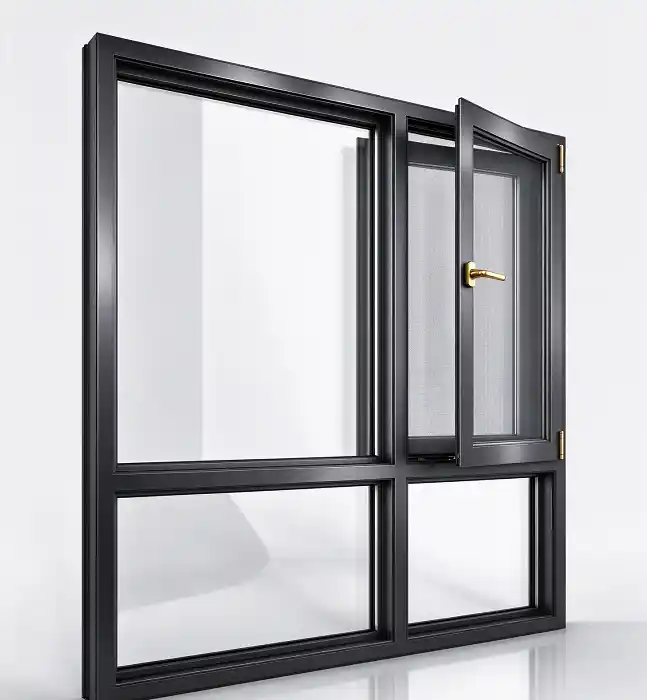

An undyed anodic oxide film is relatively transparent and preserves the natural metallic appearance of aluminum. It creates a clean, refined finish, which is why anodized aluminum is widely used in upscale shopping centers, airports, and various public buildings.
Anodized aluminum profiles are metal products whose surfaces do not contain paint or similar flammable chemical materials. They are not easily combustible at high temperatures and, unlike some organic coatings, do not release harmful gases in the same way. This makes them suitable for spaces with stringent fire-safety and environmental requirements.
The oxide film has insulating and antistatic properties and is less prone to attracting dust. Fingerprints are also less likely to remain clearly visible after routine handling, making cleaning and maintenance easier.
Anodizing is not simply coating the aluminum surface with a protective material. It involves an electrochemical reaction that allows a dense oxide film to grow in situ on the aluminum surface, which, combined with a sealing effect, blocks corrosion pathways within the pores. It delivers corrosion resistance, wear resistance, coloring versatility, eco-friendliness, and a metallic texture all at once, making it particularly suitable for window and door aluminum profiles exposed to outdoor environments for long periods — and enabling aluminum windows and doors to maintain both performance and beauty through years of wind and rain.
