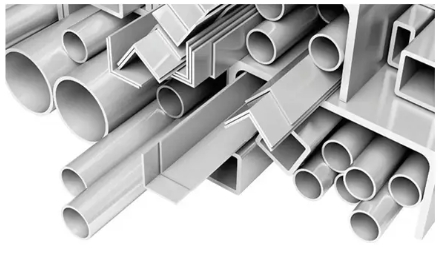

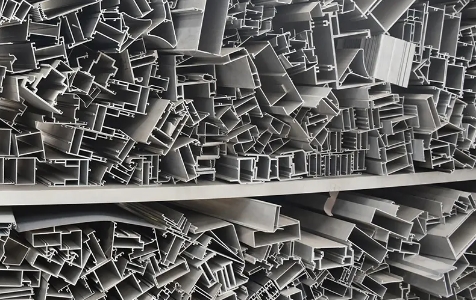

Aluminum extrusion profiles, commonly knwon as aluminium sections, are integral components in a wide range of industries. From construction to automotive, aerospace, and consumer electronics, aluminum extrusion profiles offer unmatched versatility, strength, and lightweight properties.
What is Aluminum Extrusion?
Aluminum extrusion is a process used to transform aluminum alloy into objects with definitive cross-secrional profile for a wide range of uses. The process involves forcing aluminum through a die with a specific cross-sectional shape. Extrusion allows for the creation of complex profiles that can be produced to exacting tolerances.
The Aluminum Extrusion Process
The extrusion process can be broken down into several key steps:
1. Preparation of the Aluminum Billet

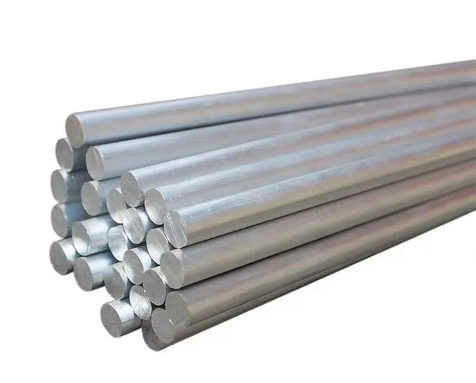

· Heating: The aluminum billet, a cylindrical piece of aluminum, is heated to around 800-925℉ (425-500℃). The temperature must be precise to make the aluminum malleable enough for extrusion while avoiding melting.
· Cutting: Billets are cut to the appropriate size, depending on the length of the extrusion needed.
2. Extrusion
· Loading the Billet: The heated billet is loaded into the extrusion press.
· Forcing Through the Die: A hydraulic ram pushes the billet through the die. The die shapes the aluminum into the desired cross-sectional profile. The aluminum emerges from the die as long piece with the same shape as the die opening.
· Cooling: The extruded aluminum profile is cooled using air or water.
3. Cutting to Length
· Once cooled, the long pieces of extruded aluminum are cut to the required lengths using a saw.
4. Stretching
· The profiles are then stretched to straighten them and correct any twisting that occurred during extrusion.
5. Aging
· To enhance the strength and hardness of the aluminum profiles, they undergo a process called aging. This can be natural (room temperature) or artificial (elevated temperature).
Post-Extrusion Treatments
After the aluminum extrusion profiles are created, they often require further processing to meet specific application needs. These treatments can enhance the appearance, durability, and performance of the aluminum profiles.
1. Surface Treatments
· Anodizing: This electrochemical process increases corrosion resistance, enhances surface hardness, and allows for coloring of the aluminum profile.
· Powder Coating: Aluminum profiles can be coated with a protective and decorative finish. Powder coating offers a wide range of color options and excellent durability.
· Polishing and Buffing: For applications requiring a reflective surface, aluminum profiles can be polished and buffed to acheive a high-gloss finish.
2. Thermal Breaks
· Insertion of Insulating Materials: For applications such as windows and doors, thermal breaks can be inserted into the aluminum profile to improve insulation properties.
3. Machining
· Cutting, Drilling, and Milling: Aluminum profiles often need precise machining to fit into specific assemblies. This can include cutting to precise lengths, drilling holes, and milling complex shapes.
4. Assembly and Fabrication
· Joining with Other Components: Aluminum profiles can be joined with other materials using methods like welding, brazing, or merchanical fasteners.
Common Questions About Aluminum Extrusion Profiles
Q1: What are the advantages of using aluminum extrusion profiles?
· A1: Aluminum extrusion profiles offer several advantages, including high strength-to-weight ratio, corrosion resistance, excellent machinability, and design flexibility. They are also recyclable, making them an environmentally friendly choice.
Q2: What types of aluminum alloys are used in extrusion?
· A2: The most common aluminum alloys used in extrusion are from the 6000 series, particularly 6061 and 6063. These alloys are favored for their good mechanical properties and ease of extrusion.
Q3: How precise are aluminum extrusion profiles?
· A3: Aluminum extrusion profiles can be produced to very tight tolerances, often within ±0.005 inches. This precision makes them suitable for applications requiring exact dimensions and fit.
Q4: Can aluminum extrusion profiles be recycled?
· A4: Yes, aluminum is highly recyclable. Extrusion profiles made from aluminum can be melted down and reused without losing their mechanical properties.
Q5: What factors should be considered when designing an aluminum extrusion profiles?
· A5: When designing an aluminum extrusion profile, consider the application's load requirements, environmental exposure, desired surface finish, and compatibility with other materials. Design for manufacturability to ensure cost-effective production.
Conclusion
Aluminum extrusion profiles, or aluminium sections, are essential in numerous industries due to their versatility, durability, and lightweight properties. The extrusion process involves several steps, from heating and shaping the aluminum billet to cooling and cutting the extruded profile. Post-extrusion treatments such as anodizing, powder coating, and machining further enhance the profile's performance and aesthetic. By understanding the extrusion process and available treatments, manufacturers can create high-quality aluminum profiles tailored to specific applications, meeting both functional and aesthetic requirements.
